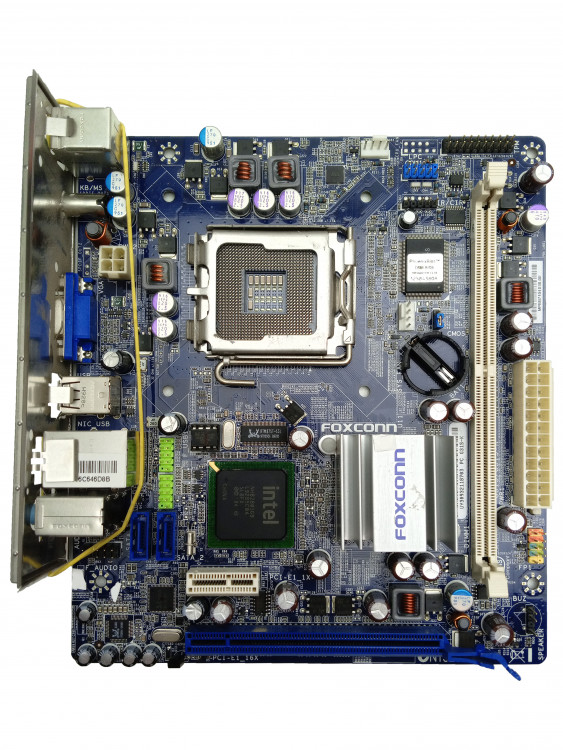

Материнская плата Foxconn G31S-K Socket 775

Processor: Intel® Core™2 Quad, Core 2 Duo, Celeron processors, Socket T (LGA775). Supports Intel® 45nm Multi-Core processors
Chipset: Intel® G31 + ICH7
Front Side Bus: 1333/1066/800 MHz (FSB)
Memory: DDR2 800/667/533 x 1 DIMMs, Max 2GB
VGA on Die: Integrated
Expansion Slots: 1* PCIe x16, 1* PCIe x1
Serial ATA(SATA)/RAID: 2* SATAII
Audio: 5.1 channel by Realtek
LAN: Gigabit Lan by Realtek® RTL8111D
Back Panel I/O Ports:
1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x S/PDIF out coaxial connector
1 x VGA port
1 x Audio jack supports 3 jacks
4 x USB 2.0 ports
1 x RJ45 LAN port
Internal I/O Connectors:
1 x ATX 24-Pin power connector
1 x 4-pin ATX 12V power connector
2 x 4-pin CPU / System FAN connectors
1 x Front Panel connector
1 x Front Audio header
1 x S/PDIF Out header(reserved)
2 x USB 2.0 connectors support additional 4 ports
2 x Serial ATAII connectors
1 x Speaker header
1 x COM header
1 x IrDA header
1 x TPM header
BIOS: Features 8Mb flash EEPROM w/ LAN boot PnP, ACPI, WfM, DMI
Standards/Manageability: PCI 2.3, USB2.0, DMI 2.5
Form Factor: Micro ATX (193mm x 170mm)
