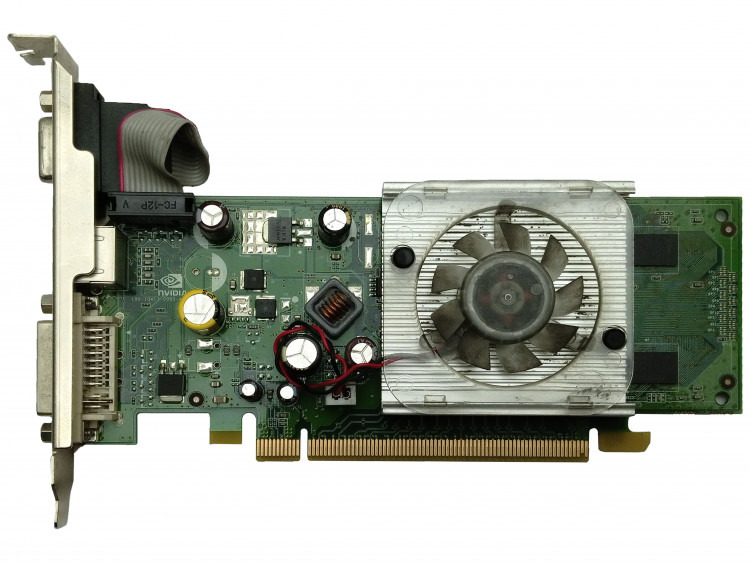

Видеокарта NVIDIA GeForce 8400 GS 128Mb
Name / Brand / Architecture |
|
| Manufacturer: | NVIDIA |
| Model: | GeForce 8400 GS |
| Reference card?: | Yes |
| Target market segment: | Desktop |
| Die name: | G86 |
| Architecture: | Unified Shader Architecture |
| Fabrication process: | 80 nm |
| Transistors: | 210 million |
| Bus interface: | PCI-E 1.0 x 16 |
| Launch date: | April 2007 |
Frequency |
|
| Graphics clock: | 450 MHz |
| Processor clock: | 900 MHz |
Memory specifications |
|
| Memory size: | 128 MB |
| Memory type: | DDR2 |
| Memory clock: | 400 MHz |
| Memory clock (effective): | 800 MHz |
| Memory interface width: | 64-bit |
| Memory bandwidth: | 6.4 GB/s |
Cores / Texture |
|
| CUDA: | 1.1 |
| CUDA cores: | 16 |
| ROPs: | 4 |
| Texture units: | 8 |
| RAMDACs: | 400 MHz |
Video features |
|
| Multi-monitor: | Up to 2 displays |
| Maximum digital resolution: | 1920 X 1200 |
| Maximum VGA resolution: | 2048 x 1536 |
| Anti-Aliasing technologies: | 16 x CSAA 16 x FSAA |
| HDMI: | Via Adapter |
| HDMI version: | 1.3a |
Performance |
|
| Pixel fill rate: | 1.8 Gigapixels/s |
| Texture fill rate: | 3.6 Gigatexels/s |
| Single presision compute power: | 28.8 GFLOPS |
External connectors |
|
| Standard display connectors: | S-Video Single-Link DVI-I VGA |
Dimensions |
|
| Width: | Single-Slot |
Other features / Support |
|
| Other features: | HDCP High Dynamic Range (HDR) Support PhysX PureVideo HD ? |
| OpenGL support: | 2.0 |
| DirectX support: | 10.0 |
| Shader model: | 4.0 |
